High Quality Steel

Steel 15 CDV 6 (SCV - 1.7734)

alloyed steel with excellent mechanical qualities
- high endurance
- high torsional strength and elasticity
- high yield point

lightweight pipes and profiles with smaller diameter and thickness can be produced

- welding without pre-warming
- elasticity

steel developed for use in airplane building also applicable to other high-speed applications such as racing automobiles, etc..

Chemische Zusammensetzung - Mittelwerte (%)
C  Mn  Si  P  S  Cr  Mo  V
0.12+0.18  0.80+1.10  0.20 max   0.020 max  0.015 max  1.25+1.50  0.80+1.00  0.20+0.30
0.156  0.99  0.19  0.009  0.033  1.38   0.85  0.24


Mechanische Eigenschaften bei Normaltemperatur
Foto  Eigenschaften im Zustand  Zugfestigkeit Rm (N/mm2)   Dehngrenze Rp0.2 (N/mm2)   Bruchdehnung A (%)   Härte

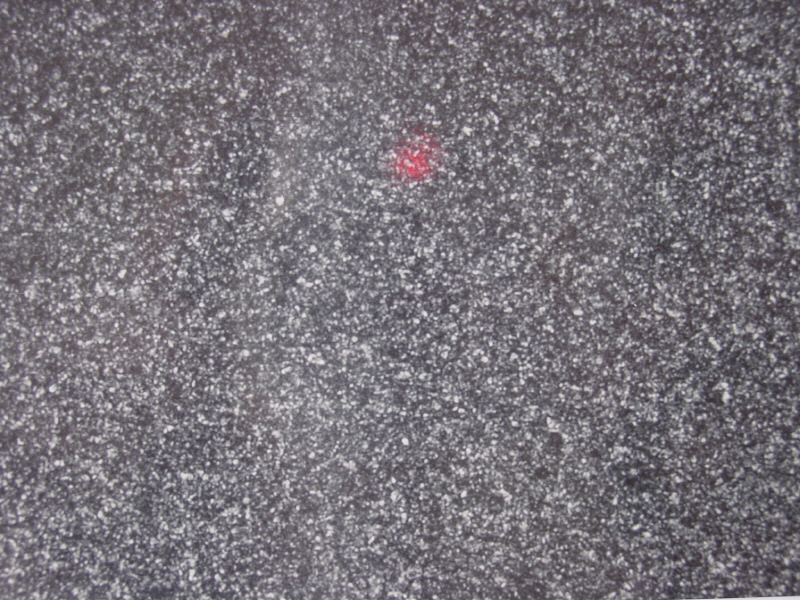

Biletta - Vollmaterial (Vergütet)   1.030 + 1.250  880 + 930   > 10   32 HRC

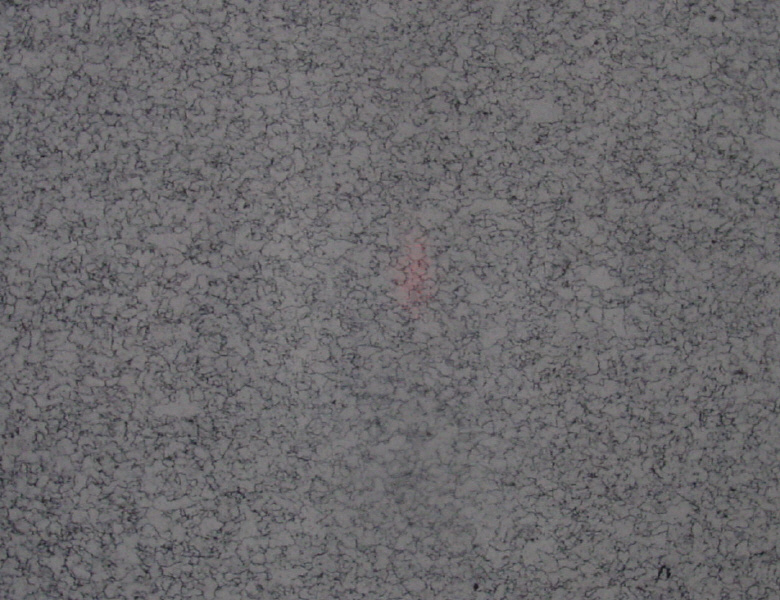

Warmgezogen - Grundmaterial - Rohr (normiert)   1.100 + 1.200  > 800   > 12  370 HB

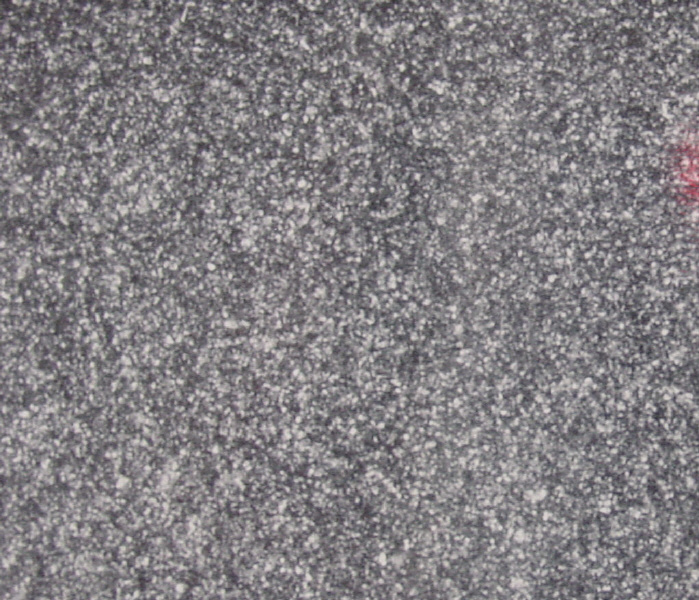

GBK - Geglüht - luftvergütet  500 + 650  > 300  > 18  170 HB

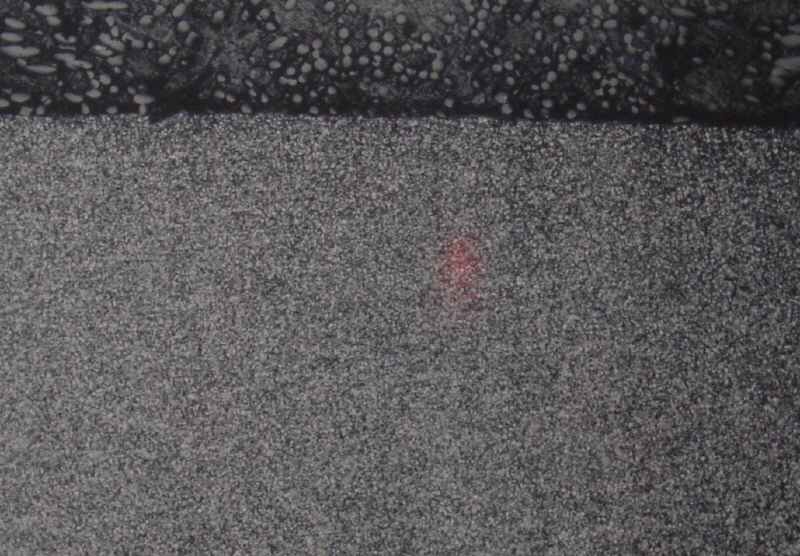

NBK - Normalizzato in atmosfera controllata  980 + 1.100  500 + 750  > 12

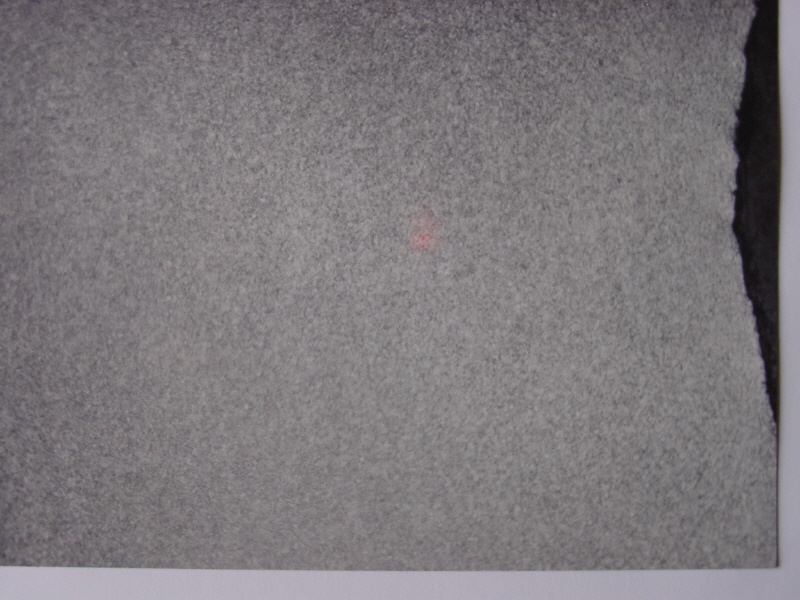

NBK+S - Rinvenimento in atmosfera controllata  950 + 1.100  700 + 800  > 14

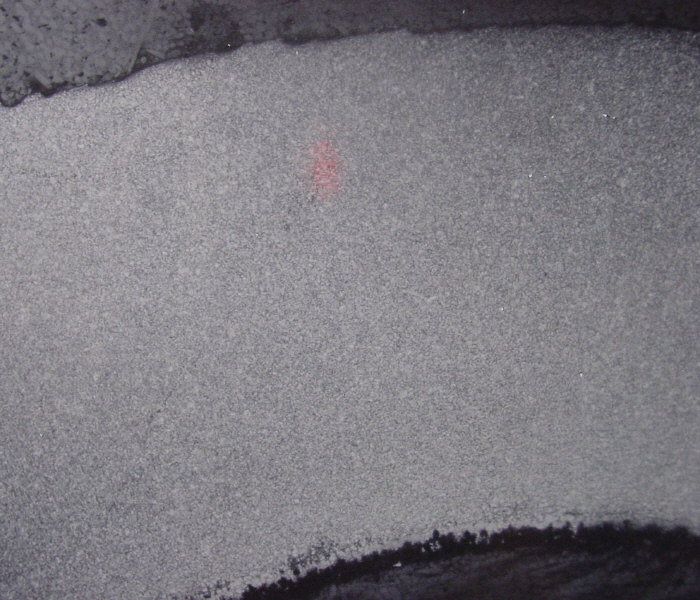

NBK+S - Superficie esterno - Ovale a goccia  950 + 1.100  700 + 800  > 14

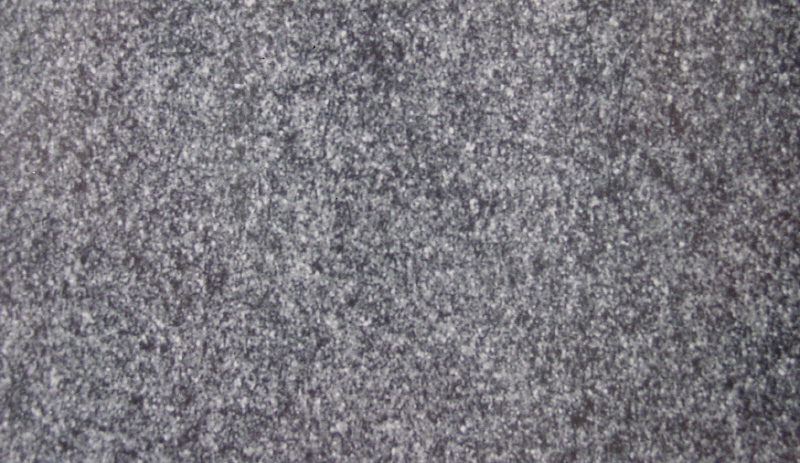

Morfologia - Raggio maggiore - Ovale goccia

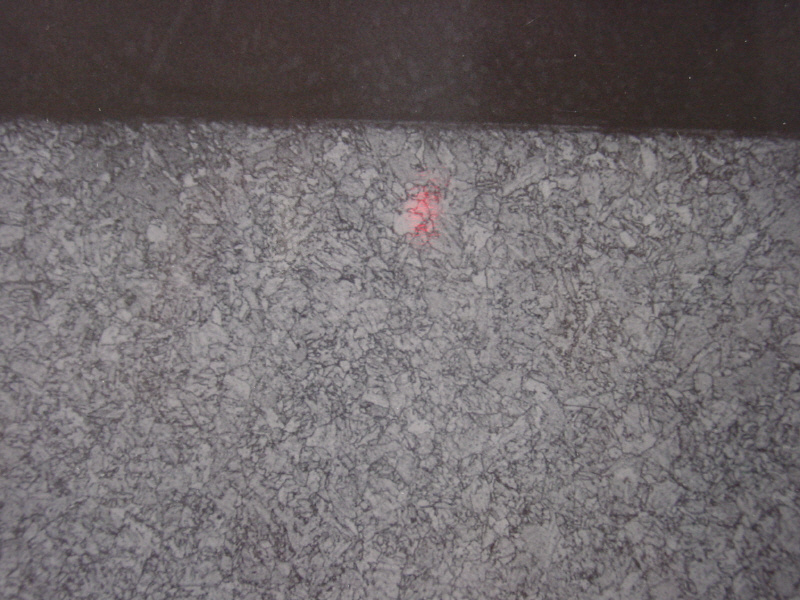

Morfologia - Raggio minore - Ovale goccia
